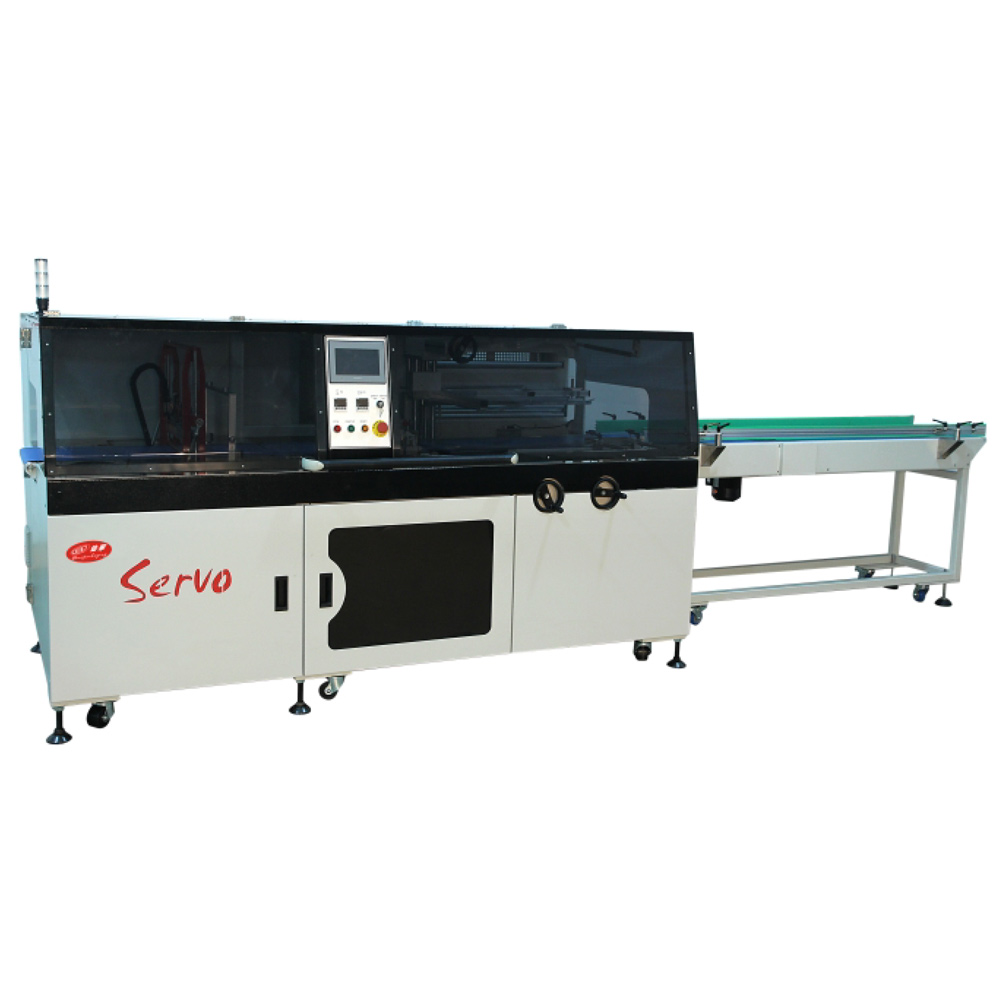

Vinhua side sealers with continuous motion， employ Servo system to enhance machine stability. Servo dynamics power with speedy, programmable and impeccable drive.Such power yield not to second thought embedded manual control with inaccuracy. Save the outlay of man-power within energetic and ever-changing industry is prime feature and dignified E-shrink Packaging deployed into the equipment.
Features
● Continuous packing motion without stopping the product
● Servo drive system ensures prerise and stable performance.
● Capable to plug-in different optional infeed system for diferent products.
● Quick change over by calling data from touch panel.
● Side seal device can reduce wastage films usage.
● Excellent perforation system allows the pin easily to change and adjust.
Technical Data
| Model | EHP-400T | EHP-400S | EHP-550T |
| Machine size(mm)* L×W×H | 6300×1825×1385 | 2855×1805×1385 | 5595×2060×1315 |
| Packing size (mm)* L×W×H | (60-1000)×(50~400)×(5~ 120) | (60-1000)×(50~400)×(5~ 120) | (60~100)×(100~ 500)×(5~120) |
| End seal bar (mm) | 500 | 500 | 630 |
| Power | 1P,220V,3.5Kw | 1P,220V,3.5Kw | 1P,220V,3.5Kw |
| Pneumatic | Max. 80 | Max. 120 | Max. 80 |
| Pneumatic | 55psi, 4Kg/sq.cm | 55psi, 4Kg/sq.cm | 55psi, 4Kg/sq.cm |
Tailor made version is available
